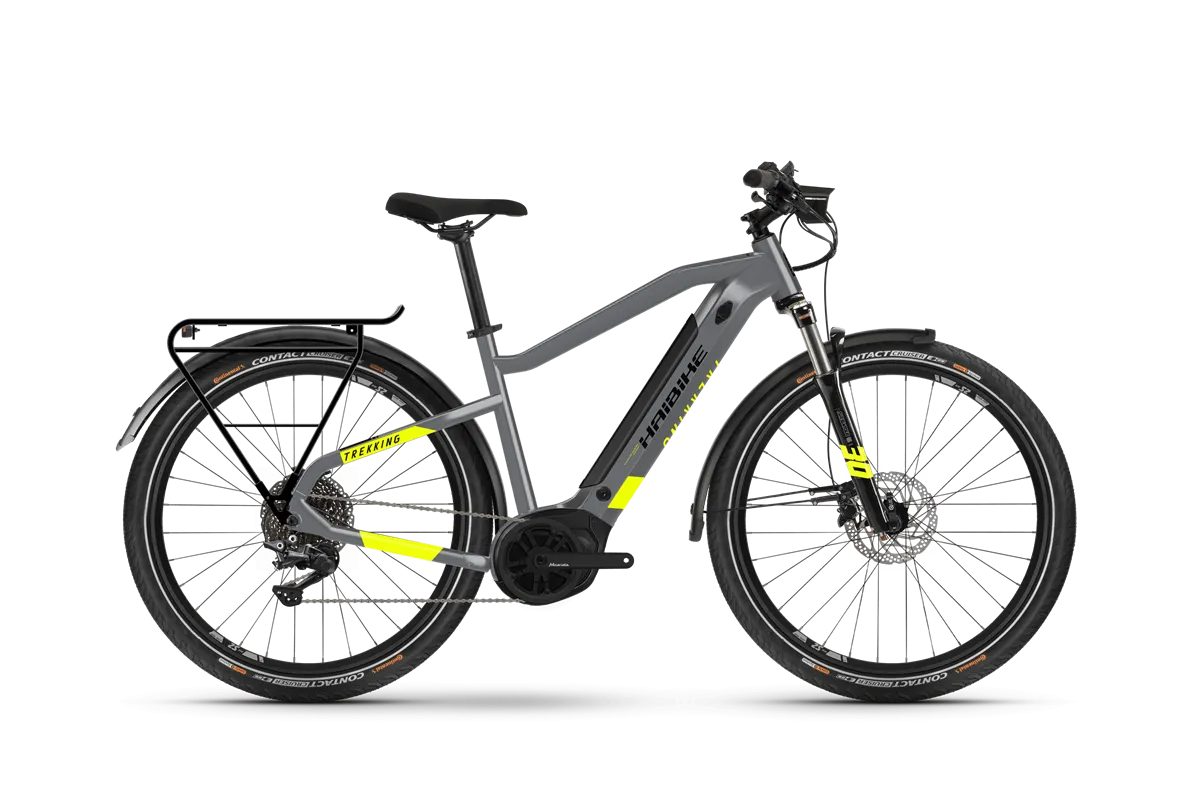

Do you love adventures on two wheels? With the Trekking 6 you have a reliable partner at your side! The powerful Yamaha PW-ST motor supports you even on long rides with extra weight. Your equipment fits on the standard carrier and the powerful lights show you the way when the day's stage gets a little longer than anticipated. The perfect eTrekking bike to explore new territory!
SPECIFICATIONS
-
-
ENGINE
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
-
DISPLAY
Yamaha, Multi Switch, 2.8" TFT, 16 functions
-
BATTERY
Yamaha, InTube, 500 Wh
-
FRAME FAMILY
Haibike, Trekking Yamaha i500/i400, Aluminium 6061
-
FORK
SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8" - 1 1/2" tapered, Quick release 100mm
-
CRANK ARM
Haibike, forged, Aluminium
-
BRAKE (FRONT)
Tektro, T275, 180 mm, 2-piston disc brake
-
BRAKE (REAR)
Tektro, T275, 160 mm, 2-piston disc brake
-
TUBE
Presta valve
-
RIM
Schürmann, Yak25, with eyelets, hollow rim, Aluminium
-
CLAMPING RING
Quick release, 34.9 mm
-
REAR DERAILLEUR
Shimano, Deore M5120
-
SHIFT LEVER
Shimano, Deore M4100, Trigger switch, 10 Speed
-
BOTTOM BRACKET
Integrated in the motor
-
SPROCKET
Shimano, M4100, 11 - 46 teeth
-
CHAIN
KMC, e10S
-
CHAINRING
Steel, 38 teeth
-
BRAKE LEVER
Tektro, T275, Aluminium
-
BRAKE DISC (FRONT)
Tektro, TR180
-
BRAKE DISC (REAR)
Tektro, TR160
-
TYRE
Continental, Contact Cruiser, 62-584, 27.5" x 2.4"
-
FRONT WHEEL HUB
Haibike Components, TheHub , 6-bolt standard
-
REAR WHEEL HUB
Haibike, TheHub , 6-bolt standard
-
SPOKES
Sapim, Leader, Black
-
HANDLEBAR
XLC, Topflat, 720 mm
-
GRIPS
XLC, Comfort bo3
-
STEM
XLC, Alu, A-head
-
HEADSET
Cane Creek, Viscoset, Aluminium
-
SADDLE
XLC, Trekking
-
SEAT POST
XLC, Aluminium, Patent, 31.6 mm
-
PEDALS
VP, E461, Aluminium, with Reflector
-
HEADLIGHT
Haibike, Skybeamer 150, 50 lm
-
REAR LIGHT
AXA, Blueline
-
DYNAMO
Via system battery
-
CARRIER
Massload, system carrier
-
FENDERS
Eurofender, Tempo, Chromoplastics
-
STAND
Ursus, Mooi , Rear stand
-
PERMITTED TOTAL WEIGHT
130.0 kg
-
